Hypertherm Powermax 45 — The Industry Standard in Plasma Cutting

The Powermax 45 has a recommended cut capacity of 12mm (1/2 inch) on mild steel, with a severance capacity reaching 16mm (5/8 inch). On stainless steel and aluminum, the recommended cut capacity is 6mm, with severance capacity of 12mm. These ratings assume standard consumables and compressed air as the plasma gas. FineCut consumables on the XP model can produce smoother edges on thinner materials (under 6mm) but do not extend the maximum thickness capability.

The system cuts any electrically conductive metal: mild steel, stainless steel, aluminum, copper, brass, and their alloys. It also performs gouging operations on these materials. Non-conductive materials such as wood, plastic, or stone cannot be processed with plasma technology. For mixed-material shops, the Powermax 45 XP offers a wider amperage range (10-45A versus 20-45A on the standard model) for better control on thin gauge materials.

The Powermax 45 operates on single-phase input power: 200-240V at 50/60Hz. Input current at maximum output is approximately 27A. The unit can also operate on three-phase 200-600V input depending on the model variant. A 40A circuit breaker is recommended for single-phase installations. The inverter-based power supply handles voltage fluctuations of +/-10% without affecting cut quality, which is relevant for generator-powered field applications.

The system requires clean, dry compressed air at 90 PSI (6.2 bar) minimum with a flow rate of 6.5 CFM (184 liters/minute). An internal air filter removes particulates down to 5 microns, but an external refrigerated dryer is recommended for humid environments to prevent moisture-related consumable degradation. Air quality directly affects consumable life — moisture in the air supply is the single most common cause of premature electrode failure.

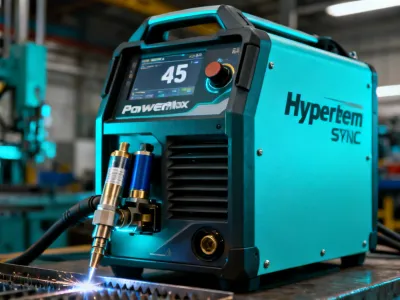

Consumable life varies by cutting conditions. Under typical production conditions (12mm mild steel, 45A, clean air supply), an electrode will last approximately 1.5 to 3 hours of actual arc-on time, and a nozzle will last 1 to 2 hours. The primary factor affecting consumable life is the number of arc starts — each ignition cycle consumes electrode material. Piercing thick plate at full amperage produces the highest wear rate. The SYNC cartridge system provides usage tracking data that helps predict replacement intervals for your specific operating profile.

Standard consumables are optimized for general-purpose cutting across the full amperage range and thickness capacity. FineCut consumables (available on the Powermax 45 XP) use a constricted nozzle orifice to produce a narrower, more focused arc column at lower amperages (15-30A). This yields a narrower kerf (approximately 0.8mm versus 1.5mm standard), reduced edge angularity, and cleaner cut surfaces on materials under 6mm. The tradeoff is reduced severance capacity and shorter consumable life compared to standard components.

Plasma and fiber laser serve different application windows, and neither is categorically superior. Fiber laser systems (1-12 kW range) produce narrower kerfs (0.1-0.3mm vs plasma's 1.0-2.0mm) and tighter tolerances on thin metals under 6mm, but they cost 5-15x more in initial investment ($150,000-$500,000+ vs $2,000-$5,000 for a Powermax 45 class system). Plasma excels where: (1) material thickness exceeds 6mm on stainless/aluminum, (2) portability is required for field work, (3) edge-to-edge material access is needed without enclosed worktables, (4) the capital budget is under $25,000. For production shops cutting primarily thin sheet (<3mm) at volumes exceeding 500 parts/day, fiber laser is likely the more efficient choice despite higher upfront cost. For mixed-thickness, mixed-location work, plasma remains the practical solution. According to the American Welding Society (AWS), plasma cutting accounted for approximately 35% of thermal cutting operations in structural fabrication as of their 2022 industry survey.

Plasma cutting has clear limitations that oxy-fuel handles better in specific scenarios. Oxy-fuel can sever mild steel thicknesses well beyond plasma's range — 300mm+ compared to the Powermax 45's 16mm severance capacity. For structural steel above 50mm, oxy-fuel torches remain the standard tool. Oxy-fuel also costs less per cut on very thick mild steel (>25mm) because fuel gas is cheaper than electricity at those thicknesses. However, oxy-fuel cannot cut stainless steel, aluminum, copper, or any non-ferrous metal, as it relies on an oxidation reaction specific to carbon steel. Oxy-fuel also produces a wider heat-affected zone (HAZ) — typically 3-5mm versus plasma's 1-2mm HAZ — which can cause warping on thinner materials. The choice depends on your material mix: if you cut only mild steel above 25mm, oxy-fuel is more cost-effective; if you process mixed metals or need portable cutting under 25mm, plasma is the stronger choice.

The Powermax 45 is covered by a manufacturer warranty against defects in materials and workmanship. The power supply carries a 3-year warranty, and the torch a 1-year warranty. Consumables and wear parts are excluded. Warranty service is provided through our network of 120+ authorized distributors and 35+ service centers. Extended warranty options and preventive maintenance programs are available through your local distributor. Registration is required within 30 days of purchase to activate the full warranty term.
