Material Processing Capabilities

The Powermax 45 processes any electrically conductive metal. Below are verified thickness ranges and recommended parameters for common materials, based on standard consumables and clean, dry compressed air at 90 PSI.

Mild Steel / Carbon Steel

Parameter	Value
Recommended Cut	12mm (1/2")
Severance Capacity	16mm (5/8")
Amperage Range	30-45A
Cut Speed (12mm)	~500 mm/min
Kerf Width (standard)	~1.5mm

Stainless Steel

Parameter	Value
Recommended Cut	6mm (1/4")
Severance Capacity	12mm (1/2")
Amperage Range	25-45A
Cut Speed (6mm)	~750 mm/min
Edge Quality	Good with minimal oxidation

Aluminum

Parameter	Value
Recommended Cut	6mm (1/4")
Severance Capacity	12mm (1/2")
Amperage Range	25-45A
Cut Speed (6mm)	~900 mm/min
Surface Finish	Minor dross, easily removed

Copper & Brass

Parameter	Value
Recommended Cut	3mm (1/8")
Severance Capacity	6mm (1/4")
Amperage Range	35-45A
Notes	High thermal conductivity requires full amperage
Surface Finish	Moderate dross, may require secondary finishing

Application-Specific Solutions

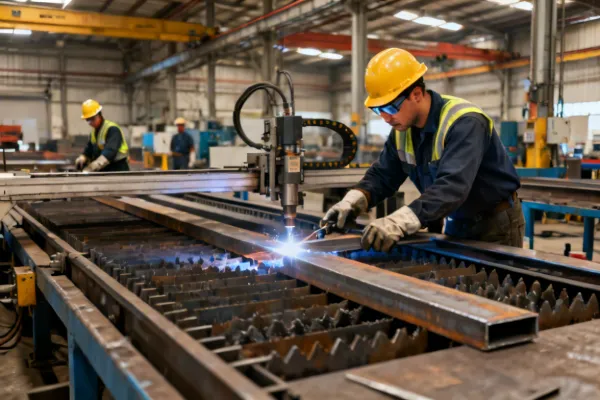

Metal Fabrication Shop Using Powermax 45

Structural Steel & Plate Fabrication

For shops processing structural members, plate, and tube, the Powermax 45 provides the combination of portability and cutting power needed for both table-mounted CNC operation and freehand work. The 45A output handles the majority of structural steel thicknesses encountered in construction fabrication, while the compact 15.4 kg form factor allows repositioning between workstations.

Recommended configuration: Powermax 45 XP with 6.1m (20') machine torch for CNC tables, plus hand torch for fitting and field work.

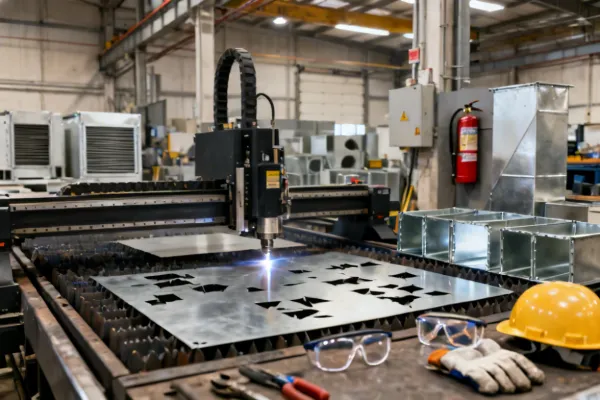

HVAC & Mechanical Contracting

Ductwork fabrication and mechanical piping require clean cuts on thinner gauge material (typically 0.6mm to 3mm) where minimal distortion matters. The Powermax 45 XP with FineCut consumables produces narrow kerf cuts with reduced heat input, minimizing warping on thin gauge galvanized steel and stainless.

Recommended configuration: Powermax 45 XP with FineCut consumables and 4.5m (15') hand torch for shop and site work.

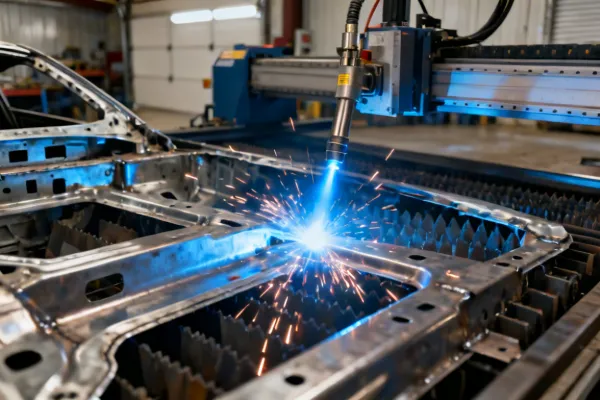

Automotive Repair & Modification

Frame repair, panel fabrication, and exhaust system work demand controlled heat input and access to tight spaces. The Powermax 45's inverter technology provides stable arc performance even on shop power supplies with voltage variation, and the compact torch body reaches into confined areas common in automotive structural work.

Recommended configuration: Powermax 45 with standard hand torch and Duramax retrofit torch for tight-access cutting.

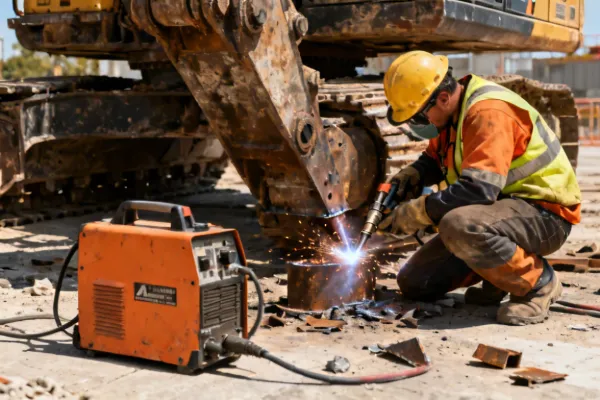

Field Service & Maintenance

On-site equipment repair and demolition requires a system that runs from generator power, handles variable input voltage, and can be carried by one person. At 15.4 kg, the Powermax 45 is designed for portability without sacrificing cutting capacity. The built-in air filter handles the less-than-ideal compressed air quality common at remote work sites.

Recommended configuration: Powermax 45 SYNC with 7.6m (25') hand torch for maximum reach on large equipment.

Cutting Technology Comparison: Where Plasma Fits

No single cutting method is optimal for every application. This comparison helps evaluate where the Powermax 45 delivers the strongest value relative to alternative technologies, and where other methods may be more appropriate.

Parameter	Plasma (Powermax 45)	Fiber Laser (1-6 kW)	Oxy-Fuel	Waterjet
Mild Steel Capacity	Up to 16mm (severance)	Up to 25mm (6kW)	Up to 300mm+	Up to 200mm+
Stainless / Aluminum	Up to 12mm (severance)	Up to 20mm (6kW)	Not possible	Up to 150mm+
Kerf Width	1.0 - 2.0mm	0.1 - 0.3mm	2.0 - 4.0mm	0.5 - 1.5mm
Heat-Affected Zone	1 - 2mm	0.2 - 0.5mm	3 - 5mm	None (cold process)
Equipment Cost (entry)	$2,000 - $5,000	$150,000 - $500,000+	$500 - $2,000	$80,000 - $250,000+
Portability	15.4 kg, fully portable	Fixed installation only	Portable (tanks required)	Fixed installation only
Operating Cost (per meter)	$0.15 - $0.40 (12mm MS)	$0.08 - $0.25 (12mm MS)	$0.10 - $0.30 (12mm MS)	$0.80 - $2.50 (12mm MS)
Best Suited For	Mixed-thickness field & shop work, portability, multi-metal under 16mm	High-volume thin sheet, tight tolerances, automated production	Very thick mild steel (>25mm), low-cost entry	Heat-sensitive materials, tight tolerances, no HAZ

Data reflects typical ranges for entry-to-mid-level systems in each category. Fiber laser costs and capacities vary significantly with power level. Oxy-fuel operating costs assume acetylene gas at North American pricing (2024 average). Plasma operating costs calculated using Hypertherm genuine consumables at typical replacement intervals. Source for thermal cutting market share: American Welding Society 2022 Industry Survey; equipment pricing based on published distributor catalogs.

Plasma Cutting Limitations to Consider

Plasma cutting is not the right solution for every application. Understanding these constraints helps you make an informed investment decision.

Thickness Ceiling

The Powermax 45's maximum severance capacity is 16mm on mild steel and 12mm on stainless/aluminum. For plate work exceeding these thicknesses, higher-amperage plasma systems (65A-125A) or oxy-fuel cutting are required. We can recommend appropriate Hypertherm systems for heavier applications.

Edge Angularity

All plasma cuts produce some edge bevel, typically 2-5 degrees on the Powermax 45. For applications requiring perpendicular edges (under 1 degree), post-cut machining or grinding may be necessary. Fiber laser and waterjet produce straighter edges on thin materials. FineCut consumables on the XP model reduce angularity on materials under 6mm.

Non-Metal Materials

Plasma cutting requires electrically conductive workpieces. Wood, plastic, stone, glass, ceramics, and composite materials cannot be processed. For these materials, CO2 laser, waterjet, or mechanical cutting methods are the appropriate alternatives.
